Food Grade Rubber Hose – FDA Compliance

+86-318-6668206

Products

Home >Products > Other Rubber Hose > Food Grade Rubber Hose

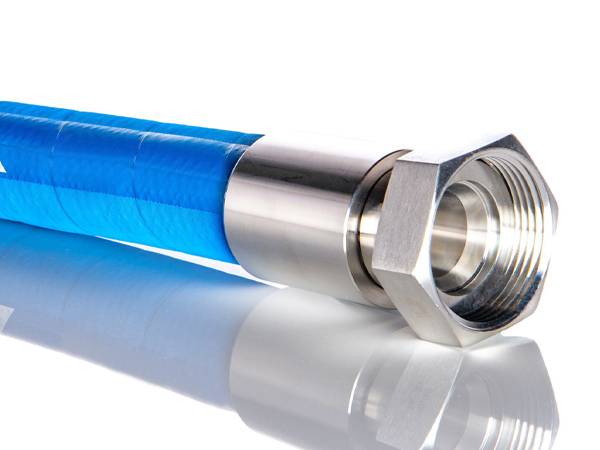

A piece of food grade rubber hose assembly on white background.

SAE 100 R1 AT hydraulic hose is suitable for engineering machinery and hydraulic equipment.

Food grade rubber hoses are primarily used to transport edible dry food and drinkable (potable) liquids in industrial food and beverage processing applications, such as milk, beer, oil, fat ,wine, cider as well as alcohol. All our food-grade hoses are made from materials that meet or exceed FDA and USDA sanitary standards for food contact.

We can supply bulk food and beverage hoses and hose assemblies for your choice.

Bulk food grade rubber hoses are convenient for cutting into any length and hose assemblies can be used onto equipment immediately.

Gallery

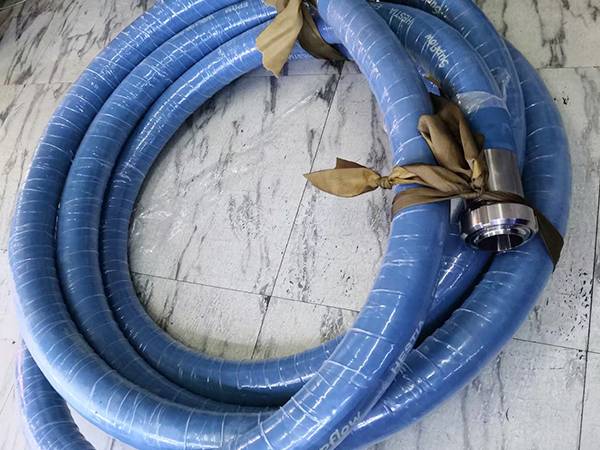

A roll of food and beverage rubber hose on the ground.

Food and beverage rubber hose roll.

Several foo grade rubber hose assemblies on the ground.

Food grade rubber hose assembly.

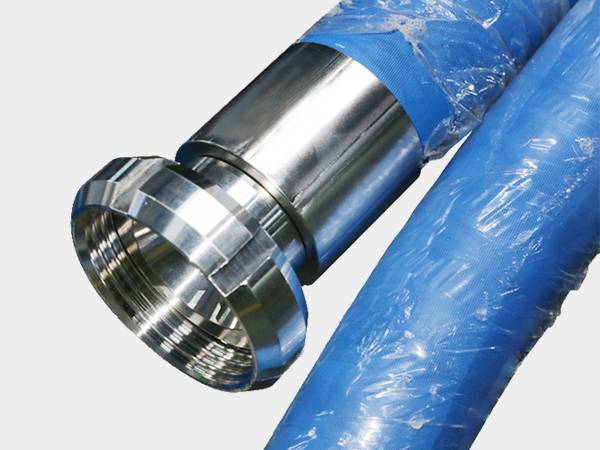

A detail of fitting on the FDA food rubber hose.

Fitting detail of food rubber hose.

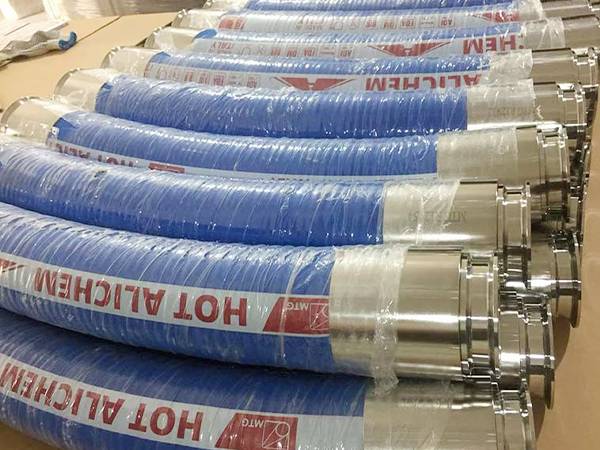

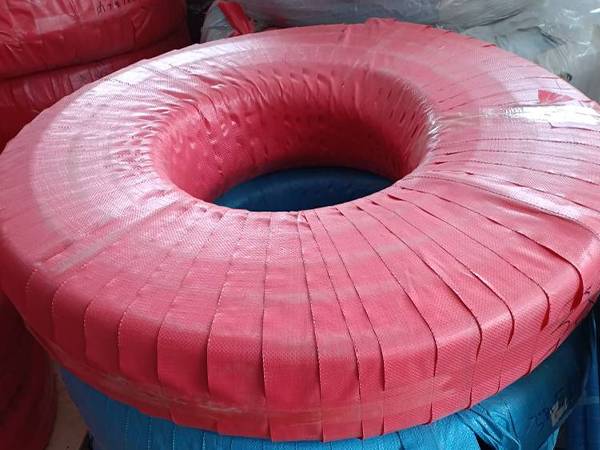

Several bundles of food rubber hoses are packed with woven bags.

Food grade rubber hose package.

Specifications

Inner Tube: Food grade oil resistant NBR, white, smooth
Reinforcement: Synthetic textile with embedded PET helix
Cover: Oil and weather resistant NBR / PVC
Working temperature: -30 °C to +150 °C
Working Pressure: 15 bar
Bursting Pressure: 40 bar
Standard Approval: EU regulation NO. 1935/2004 FDA regulation NO. 21 CFR 177.2600

Table 1: Specification of Food Grade Rubber Hose
Inner Diameter		Outer Diameter	Working Pressure	Bursting Pressure	Max. Vacuum	Bending Radius	Weight	Package Length
in.	mm	mm	bar	bar	bar	mm	kg/m	m
1"	25.0	37.0	10	30	0.9	50	0.97	20-40
1-1/4"	32.0	44.0	10	30	0.9	65	1.15	20-40
1-1/2"	38.0	50.0	10	30	0.9	75	1.32	20-40
1-9/16"	43.0	55.0	10	30	0.9	110	1.46	20-40
1-3/4"	50.0	62.0	10	30	0.9	125	1.85	20-40
2"	50.0	65.0	10	30	0.9	125	2.33	20-40
2-3/8"	60.0	73.0	10	30	0.9	150	2.26	40
2-1/2"	63.0	76.0	10	30	0.9	160	2.36	20-40
3"	75.0	89.5	10	30	0.9	225	3.40	20-40
3-1/2"	89.0	104.5	10	30	0.9	320	4.02	40
4"	100.0	115.5	10	30	0.9	500	4.49	20-40
5"	125.0	145.5	10	30	0.9	700	7.44	10-20
6"	150.0	171.5	10	30	0.9	800	9.15	10-20

Features

White smooth food-grade inner wall, which can effectively inhibit bacterial growth.
Good flexibility.
Anti-kink, abrasion resistance and stain resistance.
Wide range of applicable temperature.
Traceless rubber with abrasion resistant surface.
Can be disinfected with detergent and steam for a few minutes at temperatures not exceeding + 130°C.
Phthalate-free

Applications

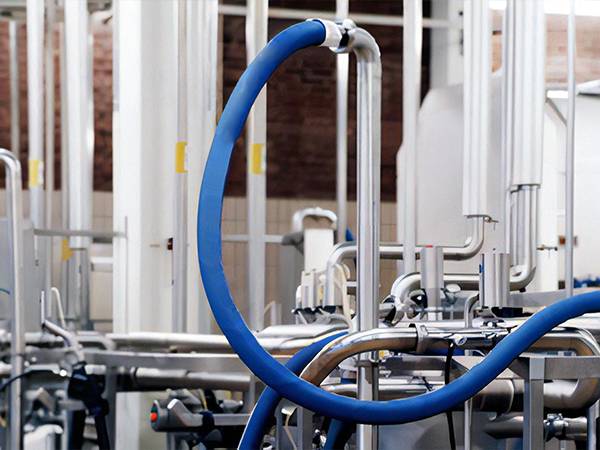

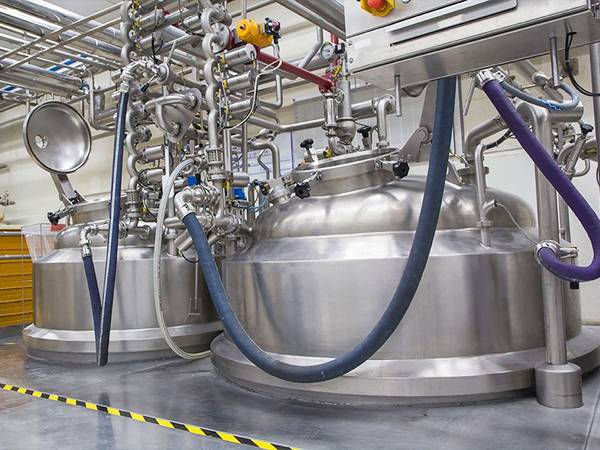

Suitable for suction and discharge of various fluid foods, such as milk, beer, vegetable oil, oil, fat, red wine, fruit wine, fruit juice, 96% concentration alcohol, etc.
Especially suitable for liquid food transportation tankers, food processing and canning workshops
Ventilation pipeline for transporting products with temperatures up to 120°C in tank trucks (not suitable for compressed pipelines)
