SAE 100 R3 hydraulic hose is resistant to aging because of its oil and weather resistant synthetic rubber cover.

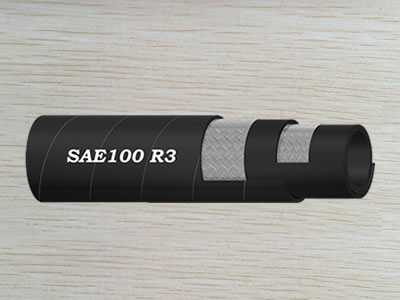

SAE 100 R3 hydraulic hose is suitable for petroleum-based hydraulic oils. It is composed of three parts: tube, reinforcement and cover. Tube is made from high quality oil resistant synthetic rubber, making hose used to deliver hydraulic oils. Reinforcement is made from two layers of proper fiber braid, making hose have solid structure and bear high working pressure. Cover is made from oil and weather resistant synthetic rubber, making hose resistant to aging and have long service life.
The details of SAE 100 R3 hydraulic hose:
- Structure: it is composed of three parts: tube, reinforcement and cover.
- Tube: oil resistant synthetic rubber.
- Reinforcement: two layers of proper fiber braid.
- Cover: oil and weather resistant synthetic rubber.
- Temperature range: -40 °C to +100 °C.
- Hose ID: 5 mm - 31.5 mm.
| Hose code | Size | SAE Size | ID | OD | Working pressure | ||||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | 1/16 | min | max | min | max | MPa | psi | |
| SAE100R3-01 | 3/16 | 5 | -3 | 4.5 | 5.4 | 11.9 | 13.5 | 10.5 | 1520 |
| SAE100R3-02 | 1/4 | 6.3 | -4 | 6.1 | 7.0 | 13.5 | 15.1 | 8.7 | 1260 |
| SAE100R3-03 | 5/16 | 8 | -5 | 7.6 | 8.5 | 16.7 | 18.3 | 8.4 | 1220 |
| SAE100R3-04 | 3/8 | 10 | -6 | 9.2 | 10.1 | 18.3 | 19.8 | 7.8 | 1130 |
| SAE100R3-05 | 1/2 | 12.5 | -8 | 12.4 | 13.5 | 23.0 | 24.6 | 7 | 1015 |
| SAE100R3-06 | 5/8 | 16 | -10 | 15.6 | 16.7 | 26.2 | 27.8 | 6.1 | 885 |
| SAE100R3-07 | 3/4 | 19 | -12 | 18.7 | 19.8 | 31.0 | 32.5 | 5.2 | 750 |
| SAE100R3-08 | 1 | 25 | -16 | 25.1 | 26.2 | 36.9 | 39.3 | 3.9 | 570 |
| SAE100R3-09 | 1-1/4 | 31.5 | -20 | 31.4 | 32.9 | 42.9 | 46.0 | 2.6 | 380 |
| Hose code | Test pressure | Burst pressure | Min bend radius | Weight | |||
|---|---|---|---|---|---|---|---|
| MPa | psi | MPa | psi | inch | mm | kg/m | |
| SAE100R3-01 | 21 | 3050 | 42 | 6090 | 2.95 | 75 | 0.16 |
| SAE100R3-02 | 17.5 | 2540 | 35 | 5075 | 2.95 | 75 | 0.18 |
| SAE100R3-03 | 16.8 | 2440 | 33.5 | 4860 | 3.94 | 100 | 0.27 |
| SAE100R3-04 | 15.7 | 2280 | 31.5 | 4570 | 3.94 | 100 | 0.31 |
| SAE100R3-05 | 14 | 2230 | 28 | 4060 | 4.92 | 125 | 0.45 |
| SAE100R3-06 | 12.2 | 1770 | 24.5 | 3550 | 5.51 | 140 | 0.53 |
| SAE100R3-07 | 10.5 | 1520 | 21 | 3045 | 5.91 | 150 | 0.72 |
| SAE100R3-08 | 7.8 | 1130 | 15.7 | 2280 | 8.07 | 205 | 0.90 |
| SAE100R3-09 | 5.2 | 750 | 10.5 | 1250 | 9.87 | 250 | 1.07 |
